The model is represented as two circular current ribbons carrying currents in the same direction. The rings are positioned along the z-axis and separated symmetrically by a distance of r/2 in the positive and negative directions. Parameters: r — ring radius; w — ribbon width The magnetic field is computed using the Biot–Savart–Laplace law. An elementary current element is a circular ribbon of width dw. The calculation is reduced to a double integral: an integral over the circumference, and an integral over the ribbon width w. One of the integrals has an analytical solution, while the other is evaluated using the Simpson method.

About this calculator Click to expand

This calculator computes the magnetic field produced by a pair of coaxial circular coils (Helmholtz configuration). It is useful for analyzing uniform magnetic field regions using the Biot–Savart–Laplace law.

Units: All calculations are performed in the Gaussian (CGS) system.
I/sm
sm
sm
Even number for Simpson’s rule.
Move the field source
sm
sm
sm
Observation point
Helmholtz Rings

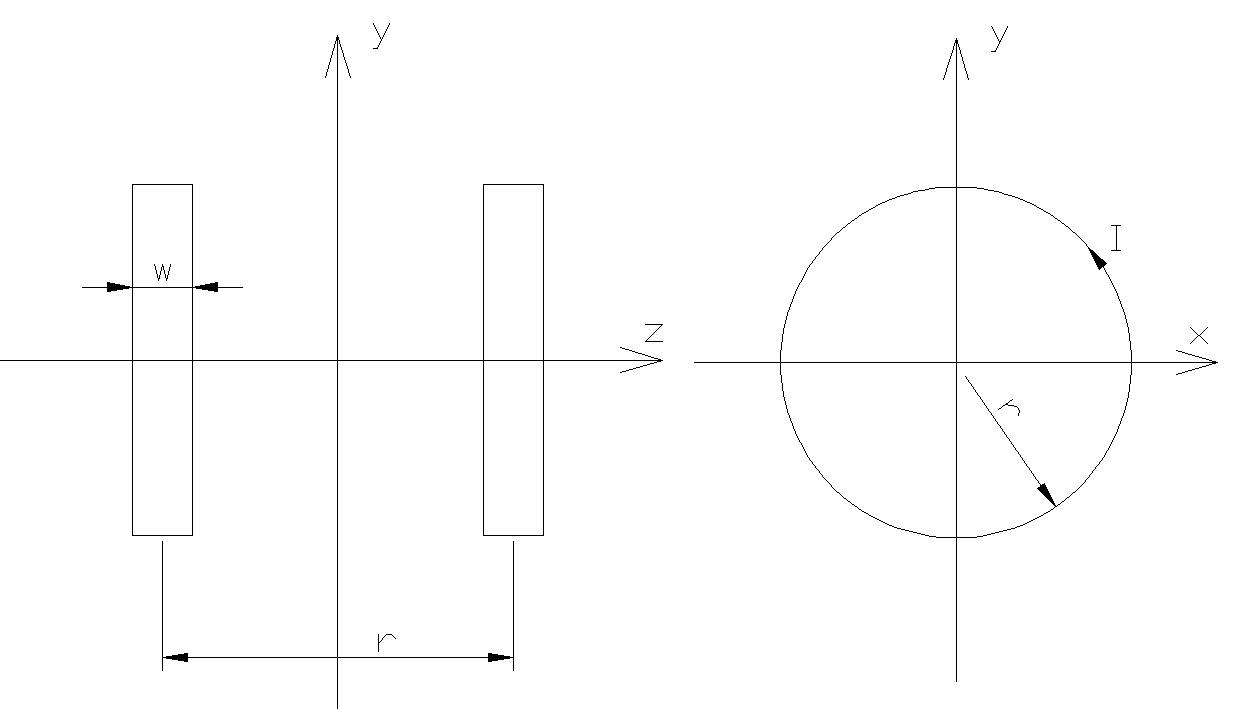

Two coaxial circular ribbons. The current flows counterclockwise
Helmholtz rings model: two coaxial circular coils producing a uniform field

Two circular ribbons carrying current in the same direction. The configuration produces a highly uniform field near the center.
