Rectangular Frame Magnetic Field Calculator | Biot-Savart Law Calculation

The model is represented as a rectangular current loop, where the current element is modeled as an infinitesimal straight line segment. The magnetic field is computed using the Biot–Savart–Laplace law. The calculation is reduced to single integrals, which have analytical solutions. As a result, the final expressions are given in terms of elementary functions.

About this calculator Click to expand

This calculator computes the magnetic field of a thin rectangular current loop using exact line-integral expressions derived from the Biot–Savart–Laplace law.

Units: All calculations are performed in the Gaussian (CGS) system.
Width along X axis (sm)
Height along Y axis (sm)
Move the field source
sm
sm
sm
Observation point

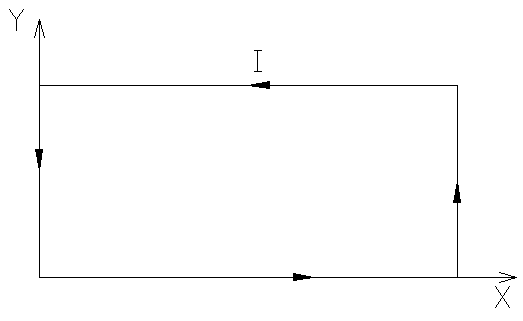

Rectangular Frame Model
Thin rectangular current loop in the XY plane
Rectangular frame current loop model in the XY plane

The frame lies in the XY plane, lower-left corner at the origin. Current flows counter-clockwise.
